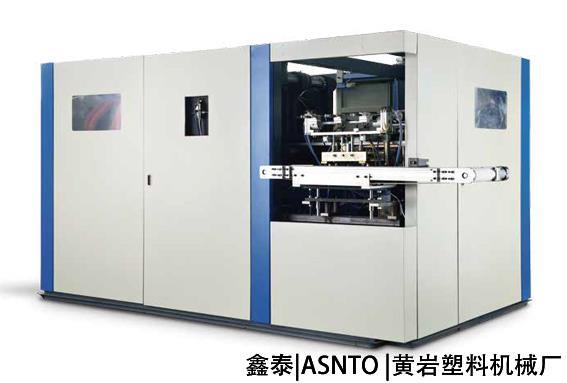

ASNTO AUXT5500 bottle blowing machine |SNTO| bottle blowing machine,pet bottle blowing
| Model No. ?AUXT5500 | 1 | 2 | 3 | 4 |
| number of cavity? | 1 | 2 | 3 | 4 |
| clamping stroke? | 200 mm | 200 mm | 200 mm | 200 mm |
| production? | 600pcs/hr | 900pcs/hr | 1600pcs/hr | 2800pcs/hr |
| total power? | 36 kw | 45kw | 65 kw | 80 kw |
| actual power consumption? | ≤15 kw | ≤20 kw | ≤28 kw | ≤38 kw |
| pressure for working? | 10 kg | 10 kg | 10 kg | 10 kg |
| pressure for blowing? | 30 kg | 30 kg | 30 kg | 30 kg |
| flow rate for working? | 2.5 m3 | 2.5 m3 | 1.5 m3 | 1.5 m3 |
| flow rate for blowing? | 4.0 m3 | 3.5 m3 | 3.5 m3 | 3.5 m3 |
| neck diameter? | 24-45 mm | 24-45 mm | 24-40 mm | 24-40 mm |
| max diameter? | 180 mm | 180 mm | 180 mm | 180 mm |
| max height? | 330 mm | 320 mm | 320 mm | 320 mm |
| machine size LxWxH? | 2.5x1.8x2.2 m | 2.5x2.2x2.2 m | 3.5x2.2x2.2 m | 5.0x2.2x2.2 m |
| auto loaderR LxWxH? | 1.7x2.7x2.7 | 1.7x2.7x2.7 | 1.7x2.7x2.7 | 1.7x2.7x2.7 |
| machine weight? | 2000 kg | 2500 kg | 4500 kg | 7500 kg |
